Skater Mini P+S

Specification

Check product specifications ->>

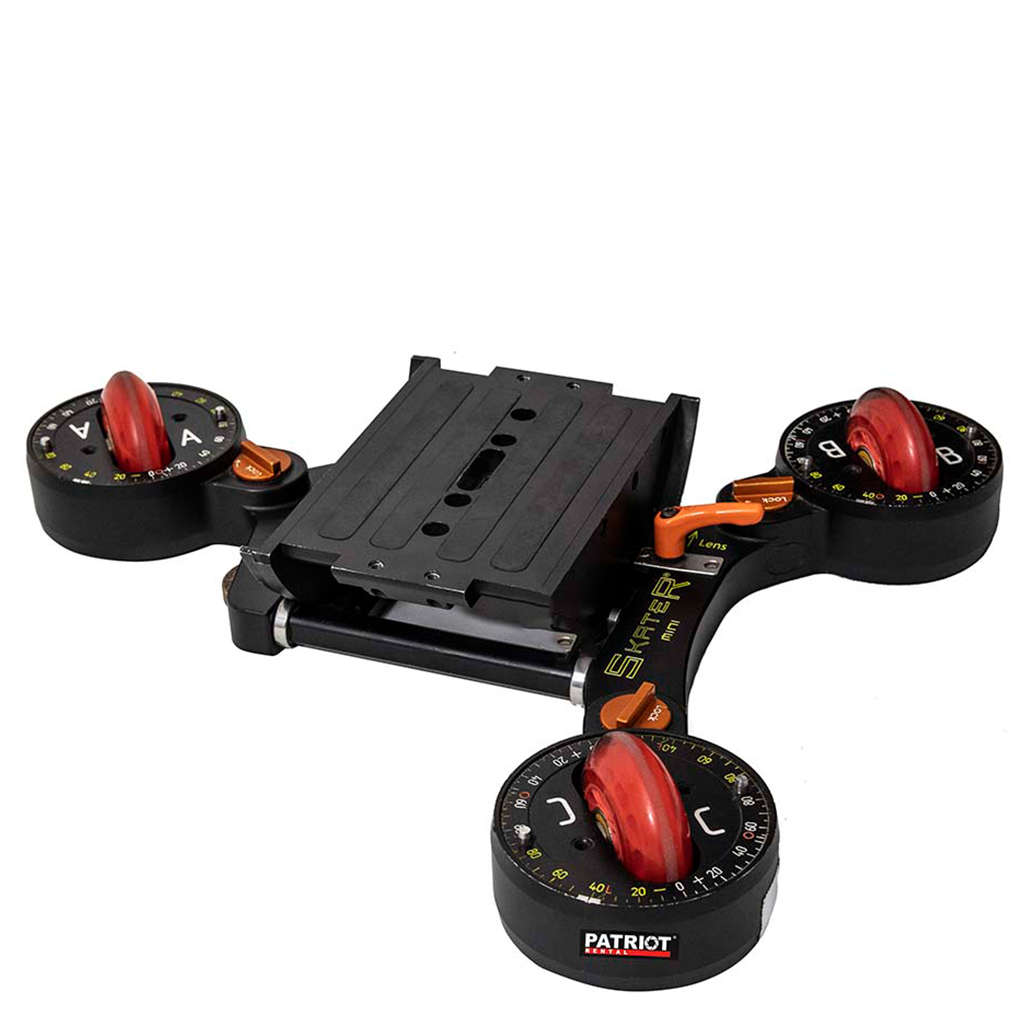

SKATER Mini
Dimensions L x W – 385 x 437mm / 15.2 x 17.2inch
Height including wheels – 72mm / 2.83inch
Mounting height with 20° rocker – 51,4mm / 2.0inch
Mounting height with 30° rocker – 71,0mm / 2.8inch
Weight incl. 20° rocker – 3800g / 8.38lbs
Max. load – 30kg / 66lbs
Size of flight case – 500 x 425 x 115mm / 19.7 x 16.7 x 4.53inch
Best operating temperature – 0-40°C / 32-104°F

SKATER Junior
Dimensions L x W x H – 310 x 320 x 72mm / 12.2 x 12.6 x 2.83inch
Weight – 2,1kg / 4.63lbs
Max. load – 12kg / 26lbs
Best operating temperature – 0-40°C / 32-104°F

SKATER Control
Input voltage range – 10V – 35V
Power supply – From camera or ext. battery (12V – 35V)
Adjustable functions – Speed, Start/Stop ramp
Memory functions – Start and Stop position
Max. speed – 0.5m/s (with load of 25kg / 55lbs)
Remote Control – Film camera RUN button

SKATER Turntable (requires SKATER Control Unit – SCU)
Dimensions L x W x H – 132 x 170 x 38mm / 5,2 x 6,7 x 1,5inch
Power supply – 12V – 35V from ext. battery into SCU
Max. load – 12kg / 26lbs
Max. Speed – 360°/ 1s

SKATER Tilt Module
Dimensions L x W x H – 234 x 295 x 205mm / 9.2 x 11.6 x 8.1inch
Weight without camera bracket – 4,85kg / 10.7lbs
Vertical shift – 80mm / 3.15inch
Horizontal shift – 170mm / 6.7inch
Max. load – 20kg / 44lbs
